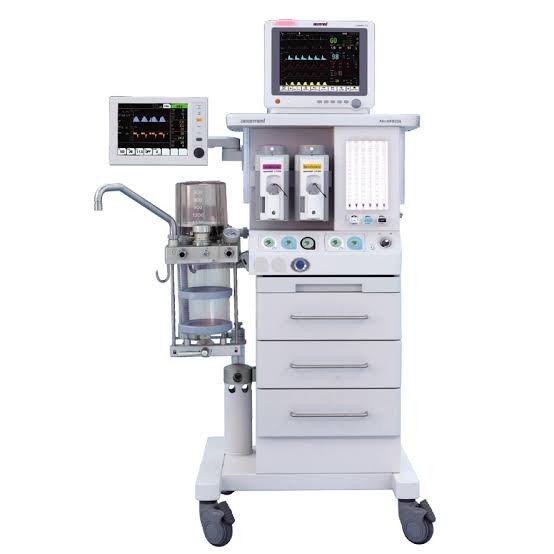

AEON 8300A Anesthesia Machine

Anesthesia workstation with an integrated ventilator and a 10.4-inch colour display, for adults and children.

AEON 8300A Anesthesia Machine
AEON 8300A

AEON 8300A Anesthesia Machine

Anesthesia workstation with an integrated ventilator and a 10.4-inch colour display, for adults and children.

At a glance
Model: AEON 8300A
Brand: AEONMED
Category: OT Equipment
Request a quote Back to Products OT Equipment
Specifications

Technical Specifications

Type Anesthesia Workstation with Integrated Ventilator
Patient Type Adult and Pediatric
Display 10.4-inch TFT Colour Display
Ventilation Modes IPPV, PCV, SIMV, PS and Manual
Tidal Volume 20–1500 mL
Respiratory Rate 4–100 breaths/min
I:E Ratio 4:1 to 1:8
Inspiratory Pressure 5–70 cmH₂O
Pressure Support 3–50 cmH₂O
PEEP OFF, 3–30 cmH₂O
Flowmeters O₂, N₂O and Air
Oxygen Flow Range 0–10 L/min
N₂O Flow Range 0–10 L/min
Air Flow Range 0–12 L/min
O₂ Flush 25–75 L/min
Breathing System Closed, Semi-closed and Semi-open
CO₂ Absorber Dual Canister System; configuration-dependent
Vaporizer Compatibility Sevoflurane, Isoflurane, Enflurane and Halothane
Vaporizer Mounting Selectatec-compatible with interlock
Monitoring Airway Pressure, Tidal Volume, Minute Volume and Respiratory Rate
Alarm System High/Low Airway Pressure, Apnea, Power Failure and Oxygen Supply Failure
Power Supply AC 100–240 V, 50/60 Hz
Battery Backup Minimum 120 minutes
Dimensions Approximately 704 × 1403 × 750 mm; configuration-dependent
Weight Approximately 100 kg
